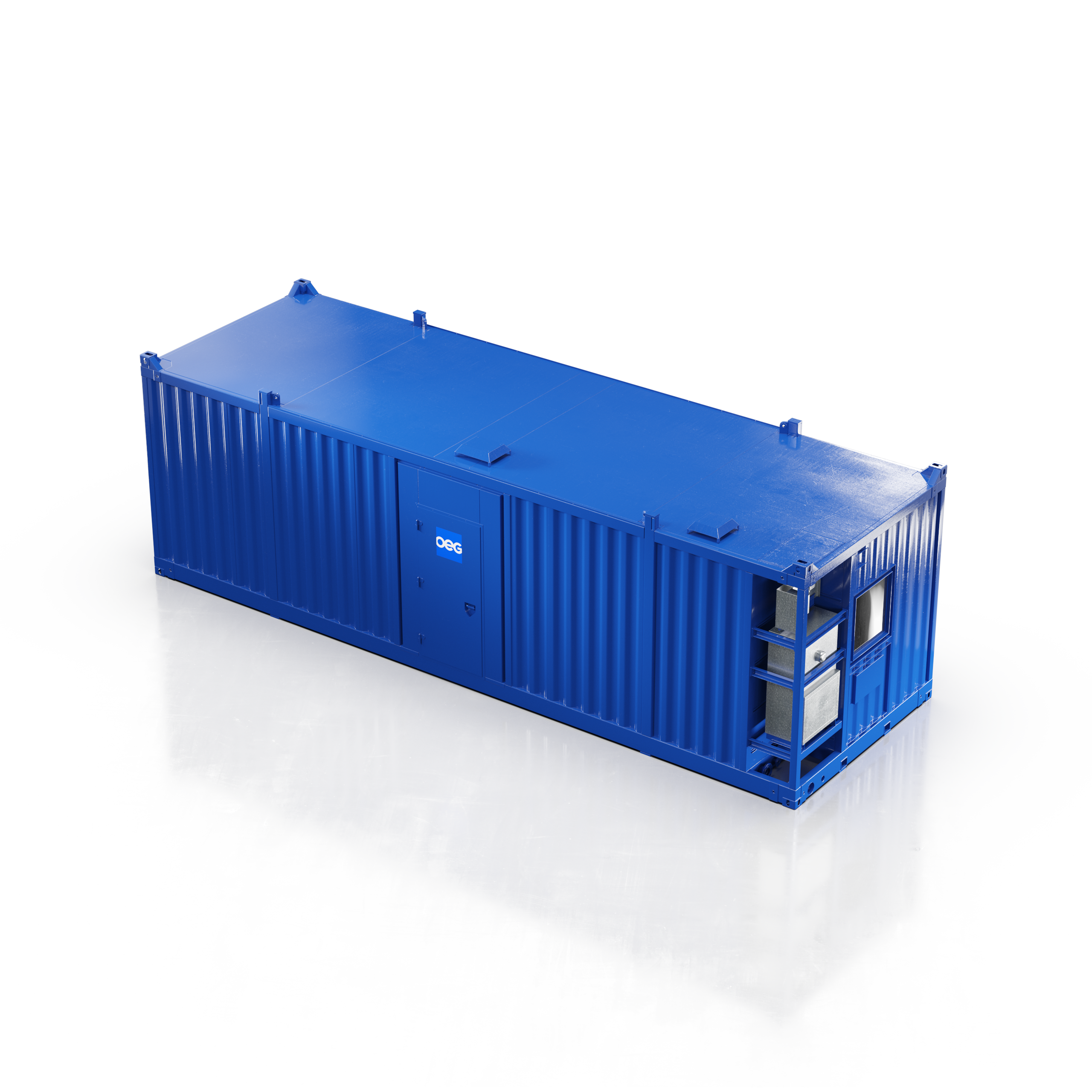

Accommodation Modules
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| 20FT / 6M MODULE | 6058 x 2438 x 2896 | - | - | 9500 |
| 25FT / 7.6M MODULE | 7680 x 3520 x 3351 | - | - | 12000 |
| 34FT / 10.3M MODULE | 10312 x 3312 x 3306 | - | - | 16000 |
Features
↓ Expand
- Structural design: DNV 2.7-1, EN 12079 & ABS
- A60 fire rated

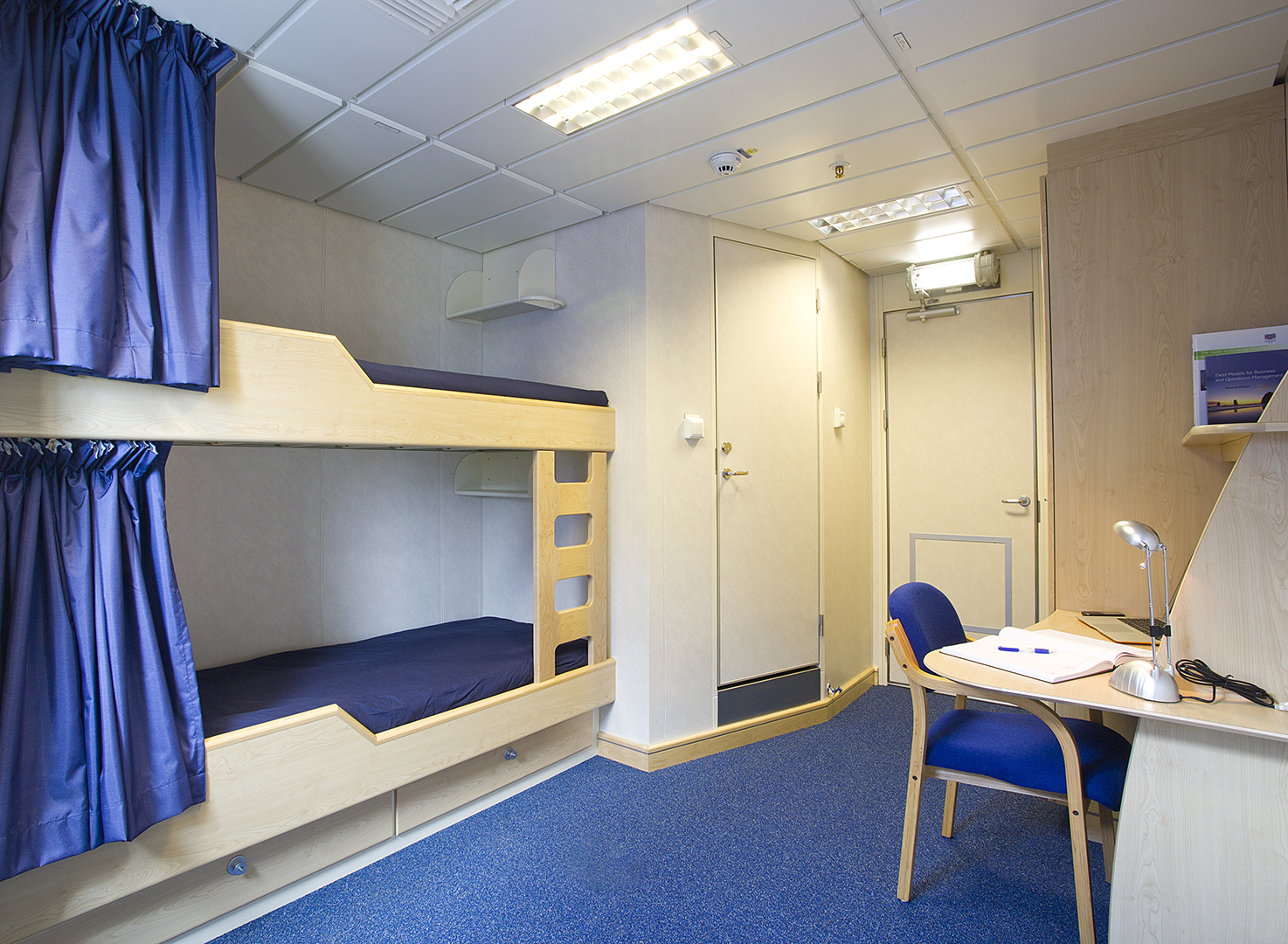

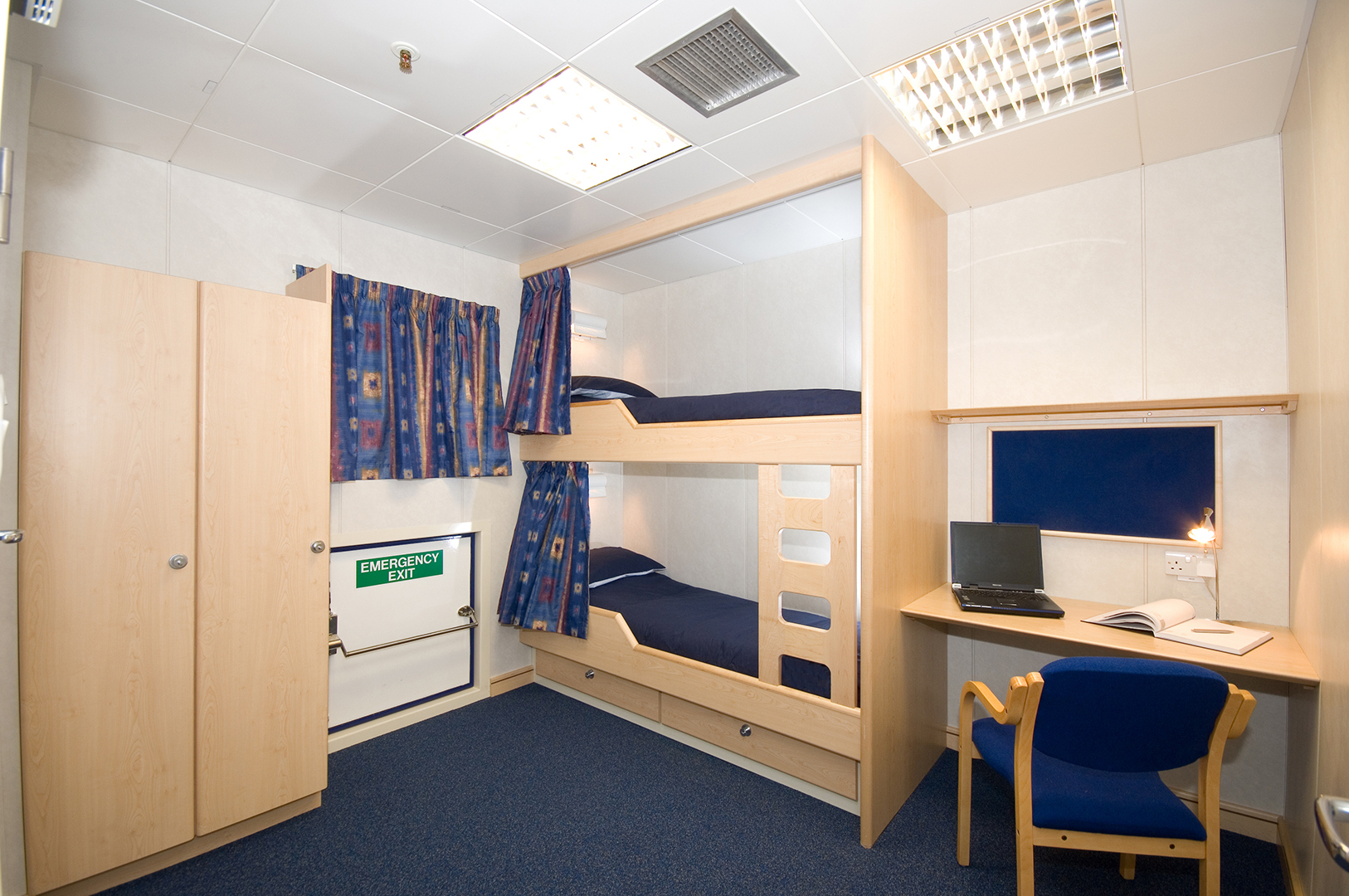

- 2 sets of bunks or single beds

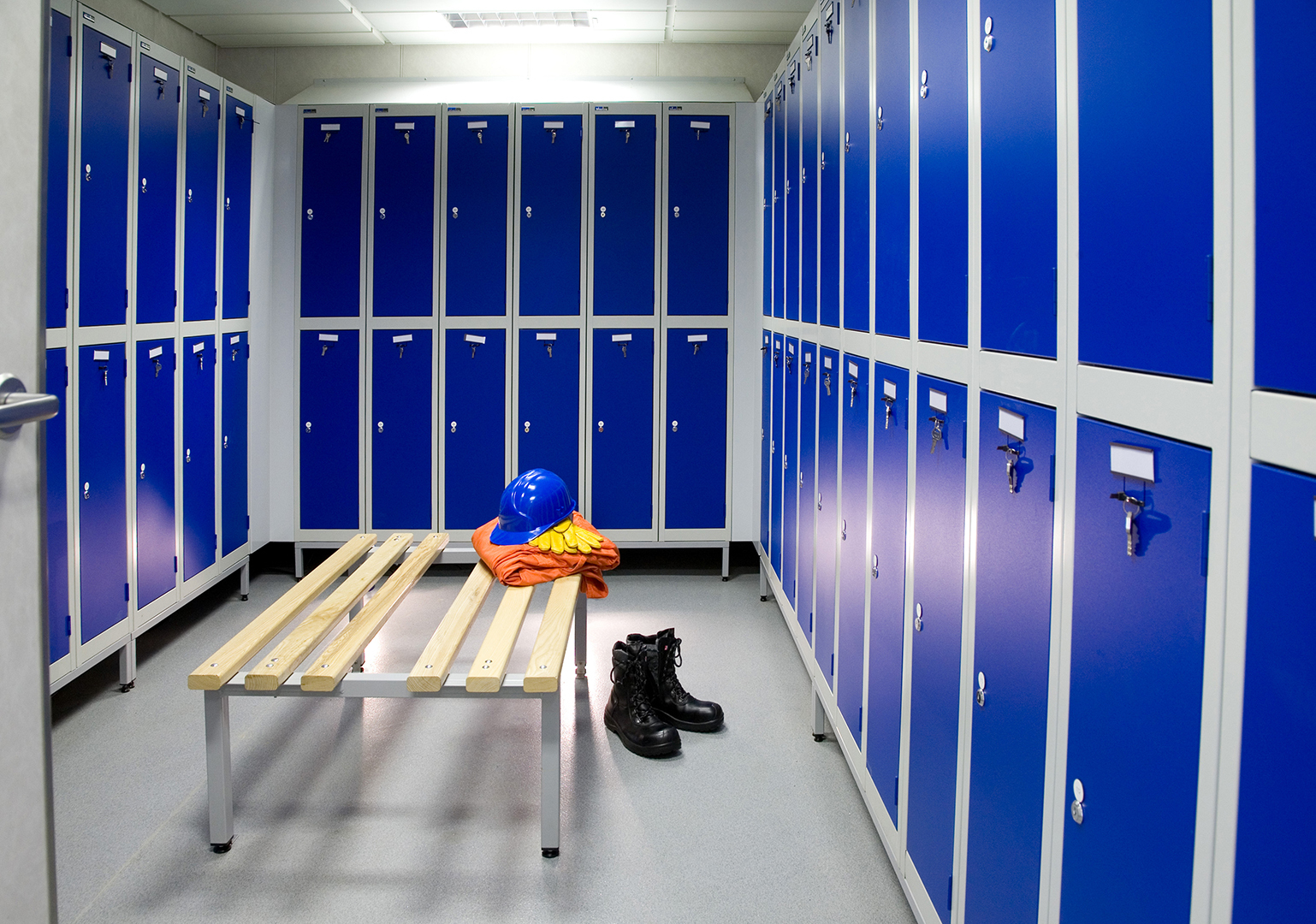

- Lockers including hanging and shelving space
- En-suite wet unit
- Shower with integral hot water system

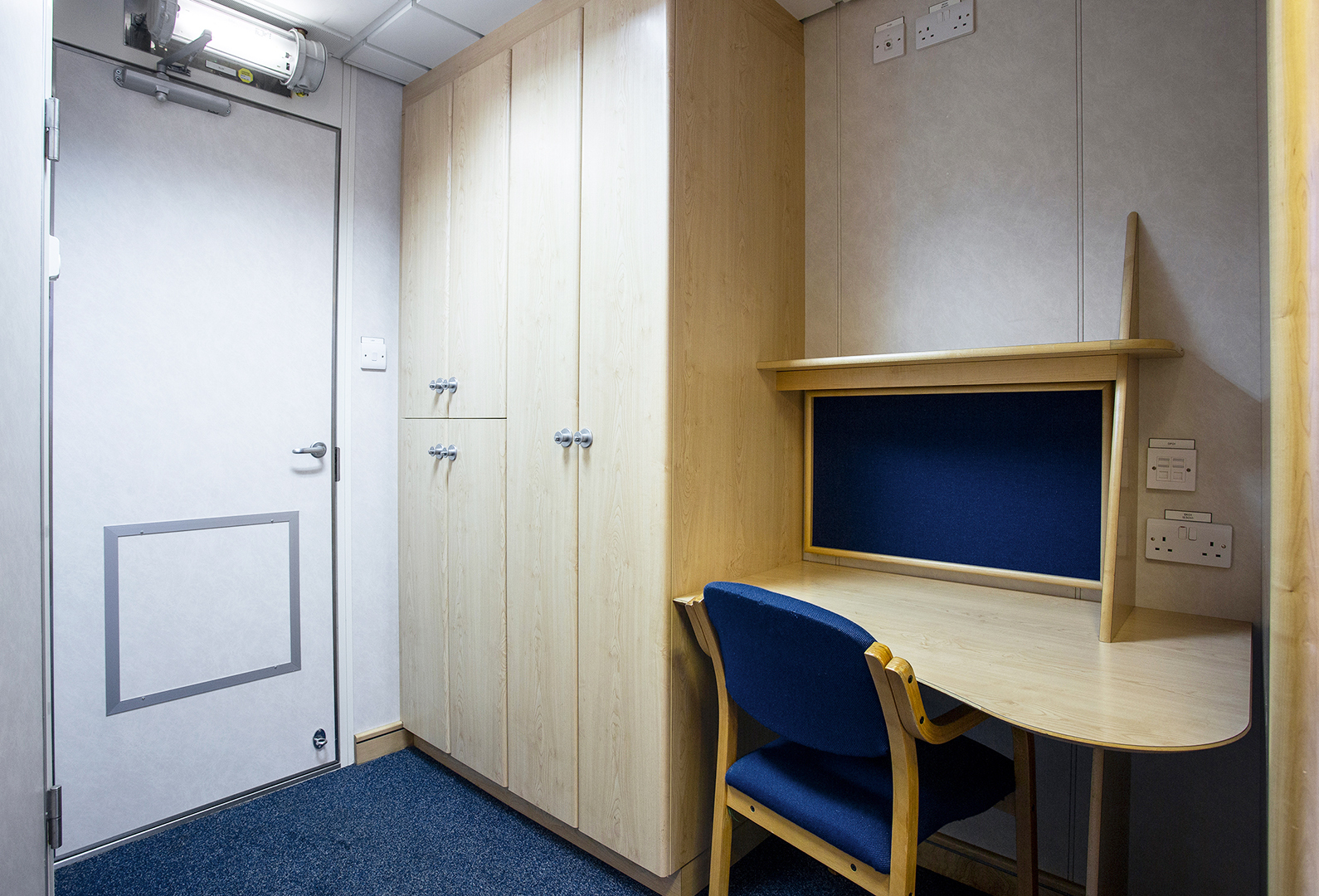

- Desk & workspace, including pin board and chair
- Integral Heating, Ventilation and Air Conditioning (HVAC) system with individual room control
- Combined pressurisation, fire and gas protection system
- High-quality fixtures and fittings
- Attractive relaxing decor and soft furnishings
- Quick and easy hook-up to on-board services

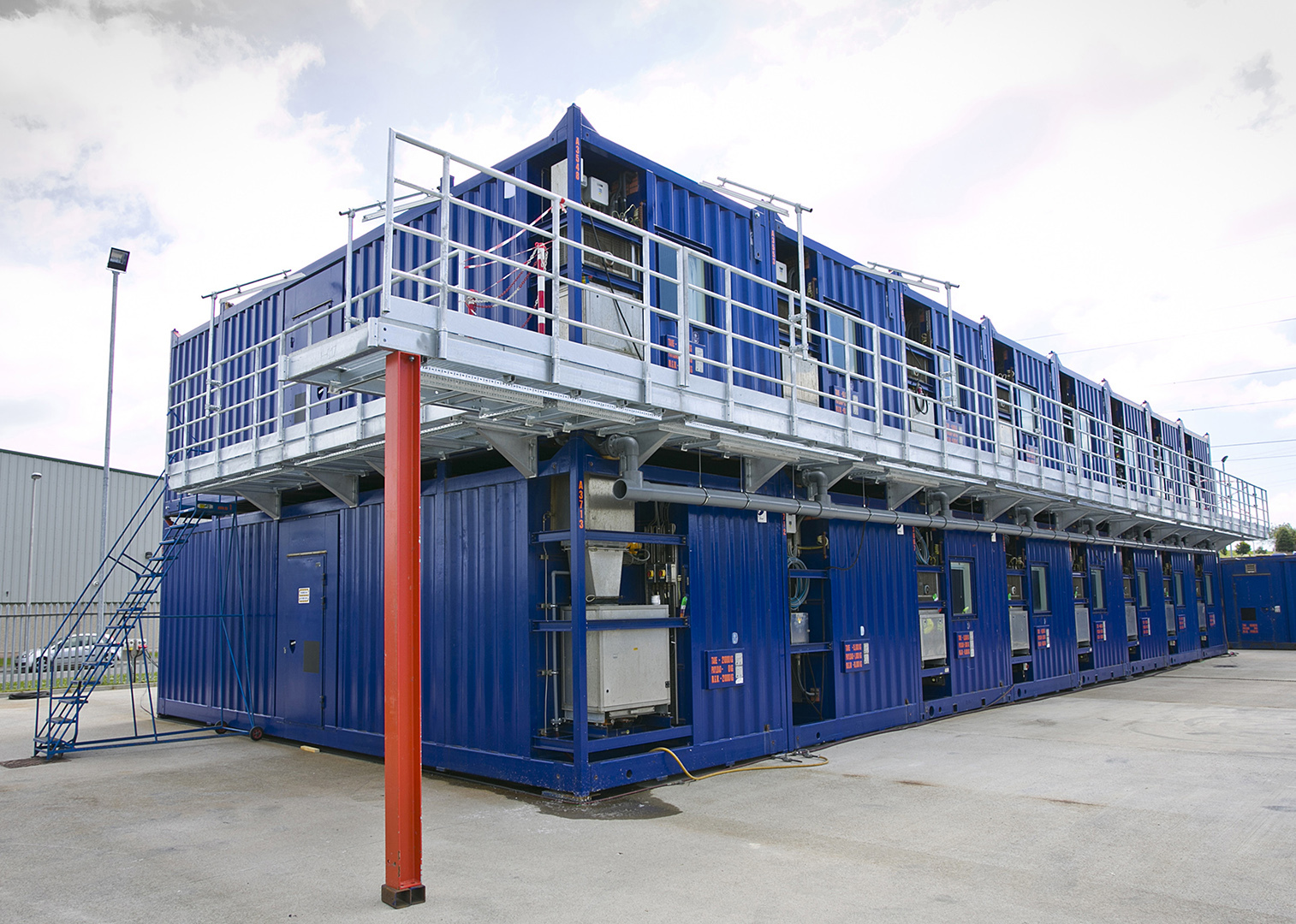

- All modules are designed for easy stacking
- 10.3m modules designed for easy interlinking
- User selectable 380V/415V/440V/460V/480V, (50Hz or 60Hz), 3 phase & Earth main power
- Nominal load current 40A per phase @ 380V
- Suggested vessel protection, 63A motor-rated circuit breaker
- Modules provide a variety of volt-free signal contacts which the vessel can incorporate into its own alarm system
- Offshore Accommodation modules available for rental or sale
