Offshore Baskets

Designed to meet harsh offshore environments, our offshore baskets are fully certified to DNV 2.7-1 / BSEN 12079 or ISO 10855 and available on a sale or rental basis.

Designs such as cargo baskets, pipe baskets, personnel baskets and drum baskets are popular units to support each offshore life cycle stage, from seismic, exploration drilling, well services, field installation, and maintenance as well as the full life of the asset’s operation followed by the decommissioning phase.

We offer bespoke design or specific modifications as the most effective solutions for specialist applications.

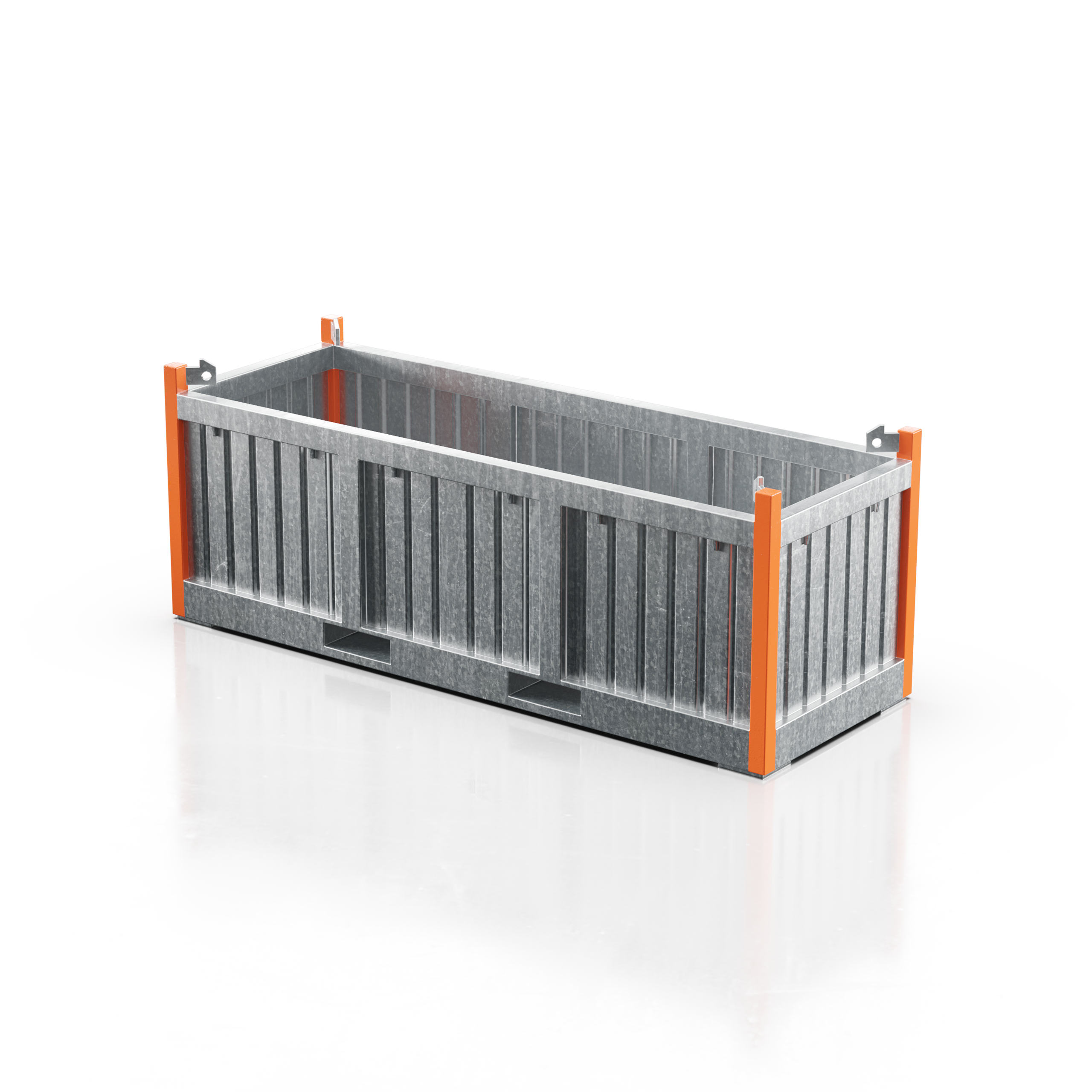

Cargo Baskets

Fleet Guide Contact us
Variant External dim. (mm) Tare (kg) Payload (kg) Max Gross (kg)
5FT X 4FT CARGO BASKET 1500 x 1200 x 1400 800 4150 5000
8FT X 4FT CARGO BASKET 2402 x 1184 x 1099 700 5000 5700
10FT X 4FT CARGO BASKET 2964 x 1064 x 1099 790 6000 6790
12FT X 4FT CARGO BASKET 3658 x 1220 x 1100 900 6000 6900
16FT X 4FT CARGO BASKET 4828 x 1184 x 1076 1210 7000 8210
20FT X 4FT CARGO BASKET 6000 x 1184 x 1093 1410 8000 9410
28FT X 4FT CARGO BASKET 8486 x 1184 x 992 1880 10000 11880
34FT X 4FT CARGO BASKET 10300 x 1200 x 1430 3070 11230 14300
40FT X 4FT CARGO BASKET 12144 x 1184 x 1095 2620 12000 14620
43FT X 4FT CARGO BASKET 13058 x 1184 x 1088 3000 10000 13000
46FT X 4FT CARGO BASKET 13973 x 1184 x 1095 3080 12000 15080
53FT X 4FT CARGO BASKET 16106 x 1184 x 1095 3420 12000 15420
60FT X 4FT CARGO BASKET 18300 x 1212 x 1364 4920 11080 16000
67FT X 4FT CARGO BASKET 20523 x 1283 x 915 8618 11794 20412
75FT X 4FT CARGO BASKET 22860 x 1212 x 1351 6470 14110 20580
92FT X 4FT CARGO BASKET 28042 x 1295 x 914 10254 10157 20412
