Solutions for moving heavy or oversized equipment offshore.
Our offshore transporters are designed to meet harsh offshore environments and comply with specific equipment standards. Solutions include lifting frames, tubular transportation frames, oversized carriers, sling racks and the Hinge-Lok Tubular Transportation Cradle system. We offer bespoke design or specific modifications as the most effective solutions for specialist applications.
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| 6FT OPEN TOP PALLET BOX | 1890 x 1951 x 1402 | 1361 | 3175 | 4536 |

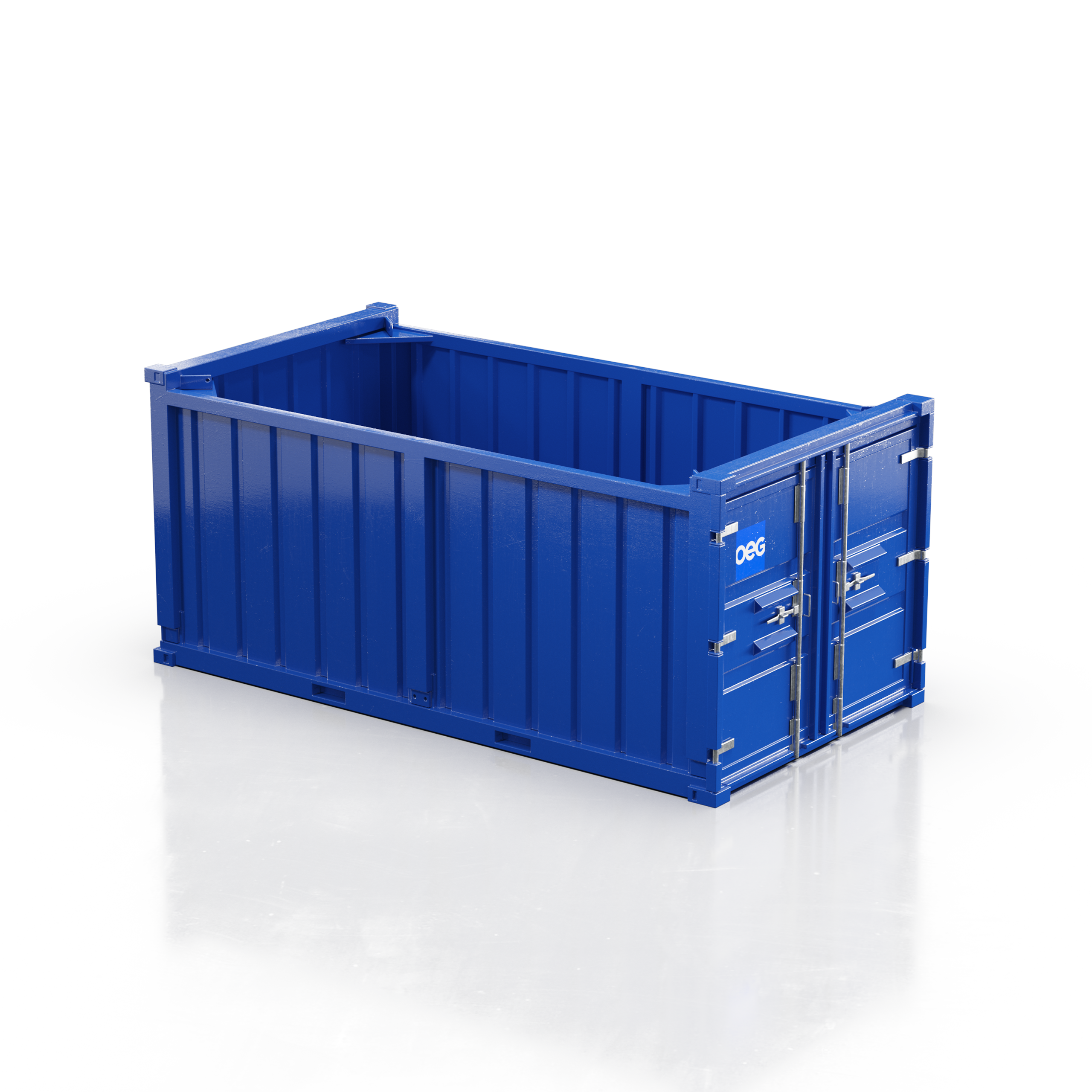

| 10FT OPEN TOP CONTAINER | 2991 x 2438 x 2591 | 2220 | 8000 | 10220 |
| 13FT OPEN TOP CONTAINER | 4013 x 2438 x 2591 | 2610 | 9800 | 12410 |
| 20FT OPEN TOP CONTAINER | 6058 x 2438 x 2591 | 3450 | 9750 | 13200 |
| 20FT OPEN TOP (HEAVY LIFT) CONTAINER | 6058 x 2438 x 2591 | 4140 | 20860 | 25000 |
| 22FT OPEN TOP CONTAINER | 6671 x 2438 x 2591 | 3700 | 10000 | 13700 |
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| TUBULAR TRANSPORTATION FRAMES | 4300 x 1340 x 1432 | 1100 | 10900 | 12000 |
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| 22FT EXTRA WIDE OPEN TOP | 6969 x 3349 x 3040 | 8420 | 25000 | 33420 |
| 32FT EXTRA WIDE OPEN TOP | 9770 x 3482 x 2740 | 10700 | 25000 | 35700 |
| PRODUCT | TUBULAR SIZE | QUANTITY WIDTH X HEIGHT | TOTAL QUANTITY |
|---|---|---|---|
| Hinge-Lok Tubular Transportation Cradle | 2 7/8" | 7 X 6 | 42 |
| Hinge-Lok Tubular Transportation Cradle | 3 1/2" | 7 X 4 | 28 |
| Hinge-Lok Tubular Transportation Cradle | 4" | 5 X 5 | 25 |
| Hinge-Lok Tubular Transportation Cradle | 4 1/2" | 6 X 4 | 24 |
| Hinge-Lok Tubular Transportation Cradle | 5" | 5 X 4 | 20 |
| Hinge-Lok Tubular Transportation Cradle | 5 1/2" | 5 X 3 | 15 |
| Hinge-Lok Tubular Transportation Cradle | 7" | 4 X 3 | 12 |
| Hinge-Lok Tubular Transportation Cradle | 7 5/8" | 3 X 3 | 9 |
| Hinge-Lok Tubular Transportation Cradle | 8 5/8" | 3 X 2 | 6 |
| Hinge-Lok Tubular Transportation Cradle | 9 5/8" | 3 X 2 | 6 |
| Hinge-Lok Tubular Transportation Cradle | 10 3/4" | 3 X 2 | 6 |
| Hinge-Lok Tubular Transportation Cradle | 13 3/8" | 2 X 2 | 4 |
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| HEAVY LIFT CONTAINERS | 6058 x 2438 x 2591 | 4140 | 20860 | 25000 |
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| 21FT LIFTING FRAME | 6468 x 2818 x 3285 | 6050 | 18950 | 25000 |
| 20FT LIFTING FRAME | 6058 x 2438 x 2591 | 3900 | 21100 | 25000 |
| 6.8M DNV 2.7-3 LIFTING FRAME | 6800 x 4500 x 3066 | 8800 | 30000 | 38000 |
| 8M DNV 2.7-3 LIFTING FRAME | 8010 x 5000 x 3066 | 11270 | 30000 | 41270 |
| Variant | External dim. (mm) | Tare (kg) | Payload (kg) | Max Gross (kg) |
|---|---|---|---|---|
| SLING AND PIPE RACK | 2992 X 1712 X 2240 | 1290 | 5000 | 6290 |
