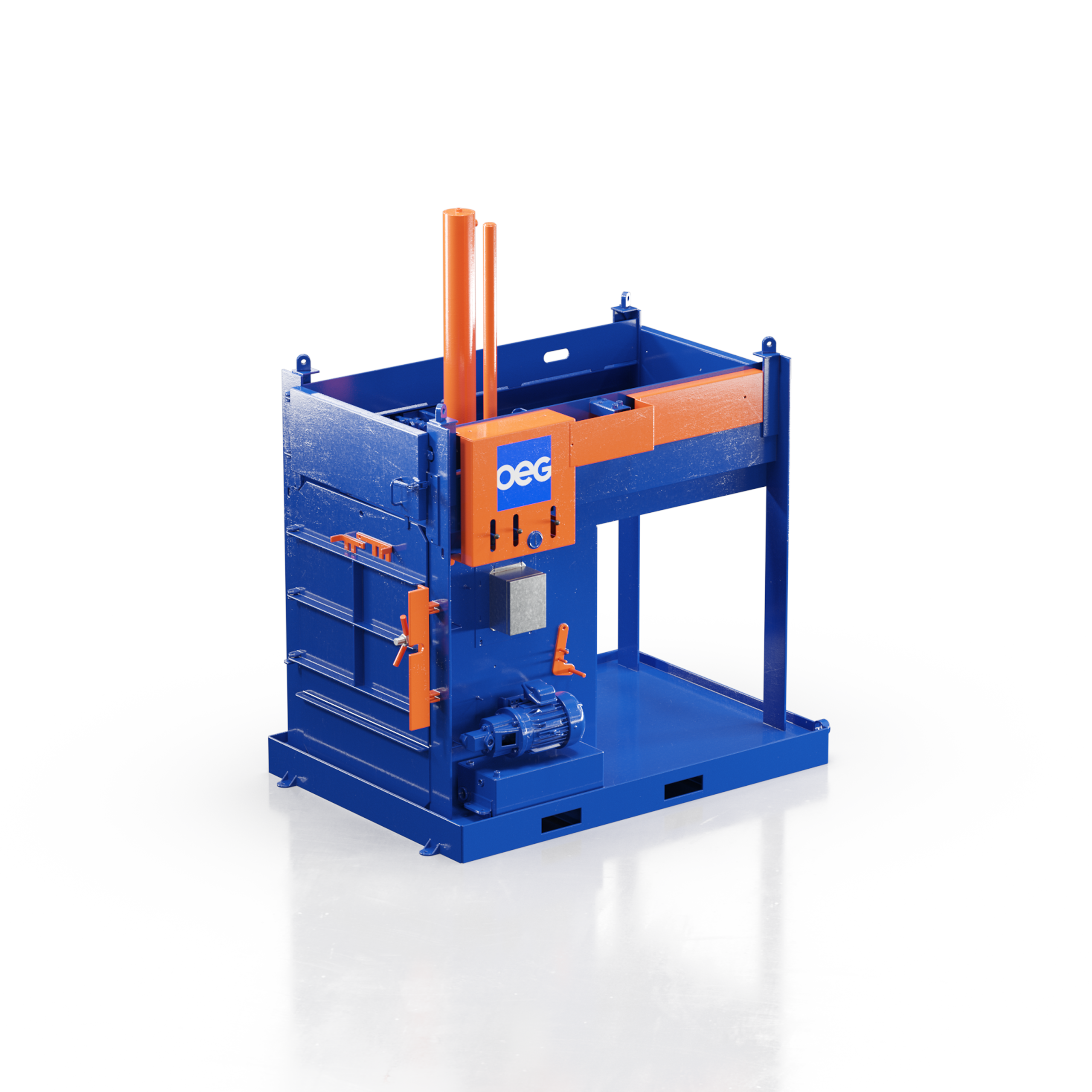

Offshore Waste Compactors
| PRODUCT | EXTERNAL DIMENSIONS | TARE WEIGHT | PAYLOAD | MAX GROSS WEIGHT | COMPACTED CAPACITY |
|---|---|---|---|---|---|
| OFFSHORE TRANSPORTABLE WASTE COMPACTOR | 3000mm x 1700mm x 2032mm | 2800 kgs | 3200 kgs | 6000 kgs | TBC |
Enviro-Pak Waste Compactors
| PRODUCT | EXTERNAL DIMENSIONS | WEIGHT |
|---|---|---|
| 4000HM WASTE COMPACTOR (MODEL 4000HM) | 117” / 2971 mm x 51” / 1295 mm x 53” / 1321 mm | 3,500 lbs / 1588 kgs |
| C-SERIES COMPACTOR (MODEL 3000C) | 107” / 2718 mm x 56” / 1422 mm x 83” / 2108 mm | 3,900 lbs / 1772 kgs |
| C-SERIES COMPACTOR (MODEL 4000C) | 107” / 2718 mm x 62” / 1575 mm x 92” / 2336 mm | 4,115 lbs / 1867 kgs |
| C-SERIES COMPACTOR (MODEL 5000C) | 114” / 2896 mm x 62” / 1575 mm x 95” / 2413 mm | 4360 lbs / 1982 kgs |
| H-SERIES COMPACTOR (MODEL H2) | 79” / 2006 mm x 32” / 813 mm x 27” / 686 mm | 520 lbs / 236 kgs |
| H-SERIES COMPACTOR (MODEL H5) | 90” / 2286 mm x 46” / 1168 mm x 48” / 1219 mm | 1,615 lbs / 733 kgs |
| H-SERIES COMPACTOR (MODEL H10) | 120” / 3048 mm x 49” / 1245 mm x 55” / 1397 mm | 1,930 lbs / 876 kgs |
| H-SERIES COMPACTOR (MODEL H15) | 128” / 3251 mm x 128” / 3251 mm x 58” / 1473 mm | 2,100 lbs / 952 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG2) | 76” / 1930 mm x 32” / 813 mm x 24” / 610 mm | 435 lbs / 198 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG2) | 28” / 711 mm x 25” / 635 mm x 22” / 559 mm | 86 lbs / 39 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG5) | 89” / 2261 mm x 43” / 1092 mm x 44” / 1118 mm | 800 lbs / 363 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG5) | 43” / 1092 mm x 40” / 1016 mm x 43” / 1092 mm | 250 lbs / 113kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG10) | 107” / 2718 mm x 54” / 1372 mm x 46” / 1168 mm | 940 lbs / 426 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG10) | 56” / 1422 mm x 48” / 1219 mm x 44” / 1118 mm | 450 lbs / 204 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG15) | 120” / 3048 mm x 57” / 1448 mm x 49” / 1245 mm | 1,100 lbs / 499 kgs |
| MARINE GREEN SERIES COMPACTOR (MODEL MG15) | 60” / 1524 mm x 46” / 1168 mm x 47” / 1194 mm | 500 lbs / 227 kgs |
| RECYCLING COMPACTOR (MODEL R44) | 90” / 2286 mm x 49” / 1245 mm x 44” / 1118 mm | 1,860 lbs / 843 kgs |
| RECYCLING COMPACTOR (MODEL R6) | 95” / 2413 mm x 72” / 1829 mm x 64” / 1626 mm | 3,500 lbs / 1588 kgs |
| RECYCLING COMPACTOR (MODEL R6x2) | 126” / 3201 mm x 86” / 2184 mm x 79” / 2006 mm | 5,900 lbs / 2677 kgs |
Enviro-Pak Balers
| PRODUCT | EXTERNAL DIMENSIONS | WEIGHT |
|---|---|---|
| B36 BALERS | 117” / 2971 mm x 51” / 1295 mm x 53” / 1346 mm | 2,300 lbs / 1043 kgs |
| STAINLESS STEEL VERTICAL BALERS (MODEL H2) | 76” / 1930 mm x 32” / 813 mm x 27” / 686 mm | 520 lbs / 236 kgs |
| STAINLESS STEEL VERTICAL BALERS (MODEL H5) | 89” / 2261 mm x 46” / 1168 mm x 48” / 1219 mm | 1,615 lbs / 733 kgs |
| STAINLESS STEEL VERTICAL BALERS (MODEL H10) | 120” / 3048 mm x 49” / 1245 mm x 95” / 2413 mm | 1,930 lbs / 876 kgs |
| STAINLESS STEEL VERTICAL BALERS (MODEL H15) | 125” / 3175 mm x 52” / 1320 mm x 58” / 1473 mm | 2,100 lbs / 952 kgs |
Enviro-Pak Food Grinders
| PRODUCT | EXTERNAL DIMENSIONS | WEIGHT |
|---|---|---|
| STAINLESS STEEL FOOD GRINDERS (MODEL S05ES) | 41” / 1041 mm x 30” / 762 mm x 25” / 635 mm | 375 lbs / 170 kgs |
| TUFF GUT FOOD GRINDER | 36” / 914 mm x 27” / 686 mm x 27” / 686 mm | 396 lbs / 179 kgs |
| TUFF GUT II FOOD GRINDER 5 GALLON SINK | 41"/ 1044 mm x 31"/ 805 mm x 26"/ 652 mm | 350 lbs. / 159 kgs |
| TUFF GUT II FOOD GRINDER 45 GALLON SINK | 62" / 1579 mm x 40" / 1019 mm x 41" / 1036 mm | 700 lbs. / 318 kgs |
Enviro-Pak Crushers
| PRODUCT | EXTERNAL DIMENSIONS | WEIGHT |
|---|---|---|
| GLASS BOTTLE CRUSHER | 37” x 18.5 x 19” | N/A |
| CAN & PLASTIC DENSIFIER CRUSHER (MODEL CG10) | 85" / 2159 mm x 120" / 3048 mm x 30" / 762 mm | 2,200 lbs / 998 kgs |
| DRUM CRUSHER (MODEL MPC40) | 104” / 2641 mm x 39” / 990 mm x 38” / 965 mm | 1,615 lbs / 733 kgs |
| DRUM CRUSHER (MODEL MPC60) | 118” / 2997 mm x 48” / 1219 mm x 39” / 990 mm | 1,840 lbs / 835 kgs |
| DRUM CRUSHER (MODEL MPC85) | 113” / 2870 mm x 54” / 1372 mm x 46” / 1168 mm | 3,100 lbs / 1406 kgs |
| FILTER CRUSHER (MODEL FC3524) | 85” / 2159 mm x 39” / 991 mm x 48” / 1219 mm | 1,100 lbs / 499 kgs |
| FILTER CRUSHER (MODEL FC3536) | 105” / 2667 mm x 37” / 940 mm x 53” / 1346 mm | 1,400 lbs / 635 kgs |
| FILTER CRUSHER (MODEL FC5544) | 120” / 3048 mm x 37” / 940 mm x 53” / 1346 mm | 1,600 lbs / 726 kgs |
Compactor Bags and Stands
OEG Enviro-Pak is introducing our new 30% recycled polypropylene offshore waste/compactor bags to all customers. The new 30% recycled bags are a step forward in maximizing our recycling and waste reduction efforts while providing our customers with sustainable waste handling solutions.
| PRODUCT | PART NO. | MODEL | CAPACITY | SAFE WORKING LOAD | PALLET QUANTITY |
|---|---|---|---|---|---|
| 5000 WHITE / B-5000-01-07-W5 | HV96027 | 5000, MG15, H15 | 50 ft3 / 1.4 m3 | 2,200 lbs / 1000 kg | 175 |
| 5000 GREEN / B-5000-01-07-G5 | HV96031 | 5000, MG15, H15 | 50 ft3 / 1.4 m3 | 2,200 lbs / 1000 kg | 150 |
| 4000 WHITE / B-4000-01-07-W4.5 | HV96030 | 4000, MG10, H10, 40M | 40 ft3 / 1.1 m3 | 2,000 lbs / 907 kg | 200 |
| 4000 GREEN / B-4000-01-07-G4.5 | HV96029 | 4000, MG10, H10, 40M | 40 ft3 / 1.1 m3 | 2,000 lbs / 907 kg | 175 |
| 3000 WHITE / B-3000-01-07-W4.5 | HV96026 | 3000 | 30 ft3 / 0.85 m3 | 1,500 lbs / 685 kg | 250 |
| 2000 WHITE / B-20M-01-07-W3.5 | HV96025 | H5, 20M | 20 ft3 / 0.6 m3 | 600 lbs / 272 kg | 300 |
| 1700 WHITE / B-1700-01-07-W4 | HV96024 | MG5, 1700 | 17 ft3 / 0.5 m3 | 600 lbs / 272 kg | 400 |
| 1400 WHITE / B-1400-01-07-W5 | HV96023 | 1400, R6x2 | 14 ft3 / 0.4 m3 | 550 lbs / 250 kg | 450 |
| 1400 GREEN / B-1400-01-07-G5 | HV96022 | 1400, R6x2 | 14 ft3 / 0.4 m3 | 550 lbs / 250 kg | 450 |
| 1200 WHITE / B-1200-01-07-W5 | HV96021 | 1200 | 12 ft3 / 0.3 m3 | 600 lbs / 272 kg | 375 |
| 600 WHITE / B-600-01-07-W3 | HV96033 | MG2, H2, 600 | 6 ft3 / 0.2 m3 | 650 lbs / 295 kg | 600 |
| TRI2 GREEN / B-TRI2-01-07-G5 | HV96035 | R6, R6x2 | 5.5 ft3 / 0.16 m3 | 600 lbs / 272 kg | 500 |
| R44 GREEN / B-R44-01-07-G4 | HV96034 | R44 | 3.5 ft3 / 0.10 m3 | 350 lbs / 159 kg | 800 |
| UNIVERSAL RED STRAP / B-345K-RED | HV96027 | 30/40/50 | 50 ft3 / 1.4 m3 | 2,200 lbs / 1000 kg | 175 |
| UNIVERSAL WHITE STRAP / B-345K-WHITE | HV96028 | 30/40/50 | 50 ft3 / 1.4 m3 | 4,000 lbs / 1814 kg | 150 |
